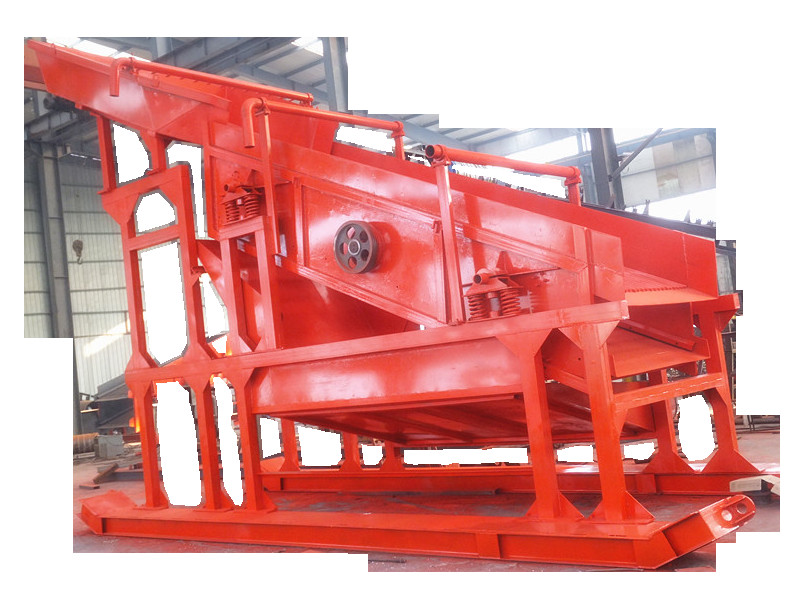

Double Deck Vibrating Screen Mining Equipment Gold Mining Machine Processing Capacity 80t/H Crible Vibrant
The vibrating screens are used for sizing different types of products. They are also used as safety device to prevent contamination of products.
Vibratory screeners are becoming more widely used across various industries because they allow for strict size-control and efficient separation in material sorting. Each vibration method ensures the particles passing along the screen, if small enough, will have the opportunity to fall through the screen mesh between the start and end of the deck. Each style comes in standard sizes, but can be customized with different deck systems, including wire mesh, steel, rod decks or polyurethane panels.
Structure of Vibrating screen machine
Mainly by the screen box, shaker, the suspension (or supporting) devices and electric motors and other components. The motor drives the main shaft of the exciter to rotate through the V-belt. Due to the centrifugal inertia force of the unbalanced weight on the exciter, the screen box is vibrated. By changing the eccentric weight of the exciter, different amplitudes can be obtained.Single, double, and triple deck configurations allow for the ultimate in-process flexibility.
Product parameter of Vibrating screen machine
| ITEM | DATA |
| Processing capacity | 50-80t/h |
| Maximum passing particle size | 300mm |
| Loa(L*W*H) | 6000*2000*4000mm |
| Vibrating screen size (L*W*H) | 3600*1500*1500mm |
| Maximum feed particles | 200mm |
| Number of layers | 2 |
| Aperture of upper sieve | 20mm |
| Lower sieve aperture | 8mm |
| Vibration frequency | 960f/min |
| Power | 15kw |
Areas of application of vibrating screening machine
1,Hard screening tasks in all weather conditions
2,Damp, wet and dry screening
3,Screening of building materials, industrial minerals, salts
4,Screening technology for coal and steel industry
5,Screening of ores
Product Tags:
|
|

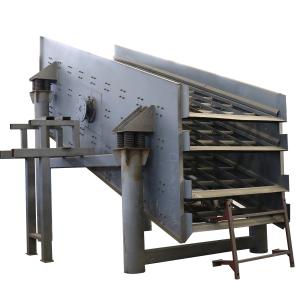

Double Rod Deck Vibrating Screen Mining Equipment Processing Capacity 80t/H Images
|
